Assignment 4: E Pluribus Unum?

Out of many, one. This project is the SIMD parallel pipelined Verilog implementation of the KySMet instruction set architecture. You are going to make it parametric such that any reasonable number of PEs (processing elements) can be built. Your Verilog code should have one `define parameter, `NPROC, which you can change to change the total number of PEs.

Where To Start?

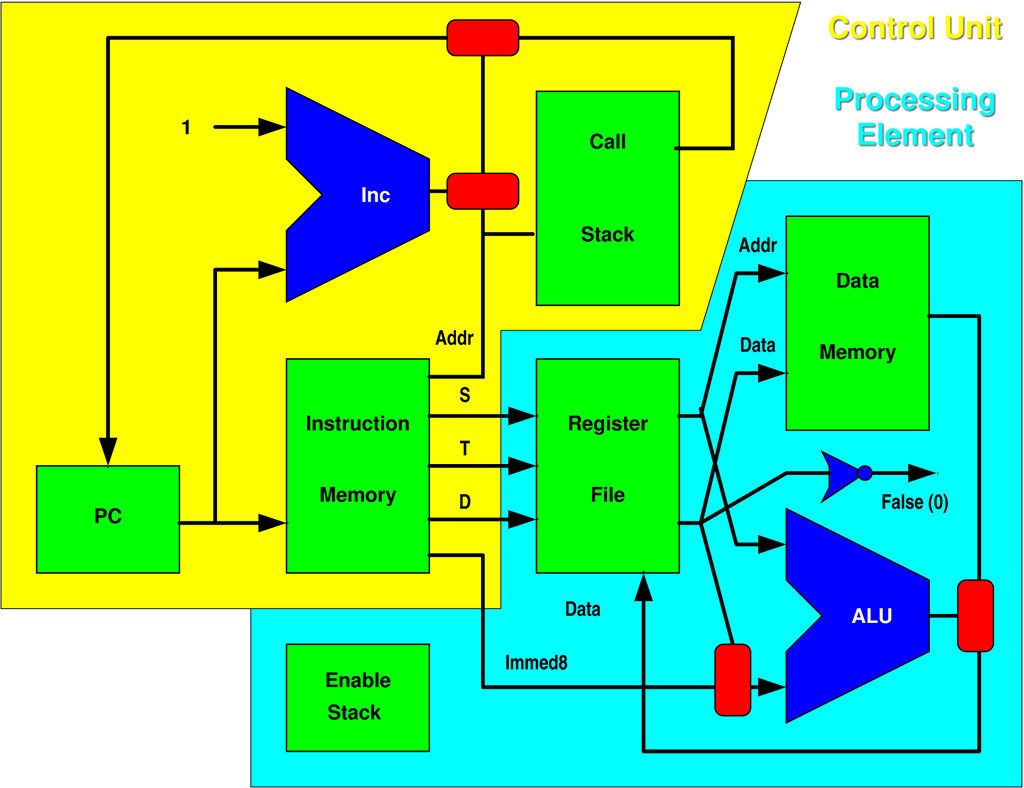

Well, naturally you'll start with the previous project's solution. Sort-of. Actually, you should start with something like this:

You already know how to pipeline the processor. Now begin by thinking about the overall structure for parallelizing the CU (control unit) and PEs (processing elements).

• Your "processor" module here should really be the entire thing, which means the CU and instantiations (using generate) of a group of PEs. Thus, I'd still expect a module processor(halt, reset, clk) to be defined and work superficially a lot like in the previous two projects.
• In a very simple view, the CU roughly correspondes to the first stage of your pipeline: instruction fetch and decode. The CU obviously owns the instruction memory, call stack, and program counter (pc). Of course, the CU can initialize the instruction memory from a VMEM file. Certainly, there is no need to have multiple copies of any instruction decode logic, so I'd suggest the CU should do whatever it takes to map an instruction bit pattern into simple, unambiguous, internal "opcodes" for each instruction.
• As we discussed in class, there is a little ambiguity as to whether the CU should also own the register file. Why? Because you really only need one decoder -- all PEs will be fetching from (and storing to) the same register numbers at the same times, so a single register file with each cell being 16*NPROC bits/cell. It's probably easier to have each PE own its register file, but that will cost a little extra hardware. It's a decision to make. In any case, the owner will need to ensure that register $0 holds 0, register $1 holds NPROC, and register $2 as seen by each PE holds the appropriate IPROC value.
• Each PE module, of which there are NPROC instantiations, owns an enable stack and a data memory. You could harmlessly assume that the data memories are either uninitialized or are all initialized identically from a single VMEM file. Of course, each PE also contains an ALU, and essentially all of the later stages of the pipeline... sort-of. The catch is that much of the interlock logic does not really need to be done per PE. For example, consider an instruction getting stuck in the register read stage waiting for an earlier instruction to write a result into a register. Every PE is accessing the same register numbers, so all PEs have identical pipeline interlock constraints. Perhaps the CU should be tracking interlocks/forwarding? Perhaps separate combinatorial assign or always blocks should own the interlock flags? Again, these are decisions to make early.
• Unlike the single-PE versions you built earlier, the enable stack here isn't trivial. Each PE needs to track its own enable status, but the current PE enable status for all PEs must be able to be checked by the CU. Recall that jumpf is taken only if all PEs are disabled, and that is something the CU needs to know. Of course, jumpf also has the effect of potentially changing the enable status of any PE, and that aspect of the instruction almost certainly should be handled by the individual PEs. More significantly, a disabled PE should not be doing loads, stores, nor changing register values. In other words, an add $u0,$u1,$u2 instruction should not change the value of register $u0 if that particular PE is currently disabled. You might want to think about factoring-out the acceptance of changes from computation of values; alternatively, you might simply turn disabled operations into null operations.
• The left, right, and gor instructions require communication between the PE register files (or is it the CU's multi-wide register file?). Thus, you'll need a parametric way to expose communication paths between PEs -- parametric because you want to be able to specify NPROC and have the number of PEs instantiated match your specification. This can be done using in and out busses in the PE modules. The left and right communications are simple formulas connecting different PEs. However, gor is a bit fancier in that it requires bitwise ORing of data from all PEs, so you need a parametric way to build an OR across all PEs.

As you start to partition the pipelined design across the CU and PEs, think carefully about which aspects of each instruction are done where. For example, a jump instruction really doesn't do anything in the PEs.

Due Dates

The recommended due date is Monday, April 23, 2018 (the start of dead week). By that time, you should definitely have at least submitted something that includes the assembler specification (kysmet.aik), and Implementor's Notes including an overview of the structure of your intended design. That overview could be in the form of a diagram, or it could be a list of top-level modules, but it is important in that it ensures you are on the right track. Final submissions will be accepted up to just before the final exam on Tuesday, May 1, 2018 (at 3:30PM, if you really want to cut it close).

Submission Procedure

For each project, you will be submitting a tarball (i.e., a file with the name ending in .tar or .tgz) that contains all things relevant to your work on the project. Minimally, each project tarball includes the source code for the project and a semi-formal "implementors notes" document as a PDF named notes.pdf. It also may include test cases, sample output, a make file, etc., but should not include any files that are built by your Makefile (e.g., no binary executables). Be sure to make it obvious which files are which; for example, if the Verilog source file isn't kysmet.v or the AIK file isn't kysmet.aik, you should be saying where these things are in your implementor's notes.

Submit your tarball below. The file can be either an ordinary .tar file created using tar cvf file.tar yourprojectfiles or a compressed .tgz file file created using tar zcvf file.tgz yourprojectfiles. Be careful about using * as a shorthand in listing yourprojectfiles on the command line, because if the output tar file is listed in the expansion, the result can be an infinite file (which is not ok).
