References: CPE380 Memories

The lecture slides as a PDF provide a good overview of everything.

The book also does a very good job explaining memory structures. Emphasis here should be on cache and TLB concepts, because these are the things that are truly hardware... you'll see more about demand-paged virtual memory if you take an OS course. Here's a quick outline for what you should have a basic understanding of:

• Terminology and overview of some I/O devices

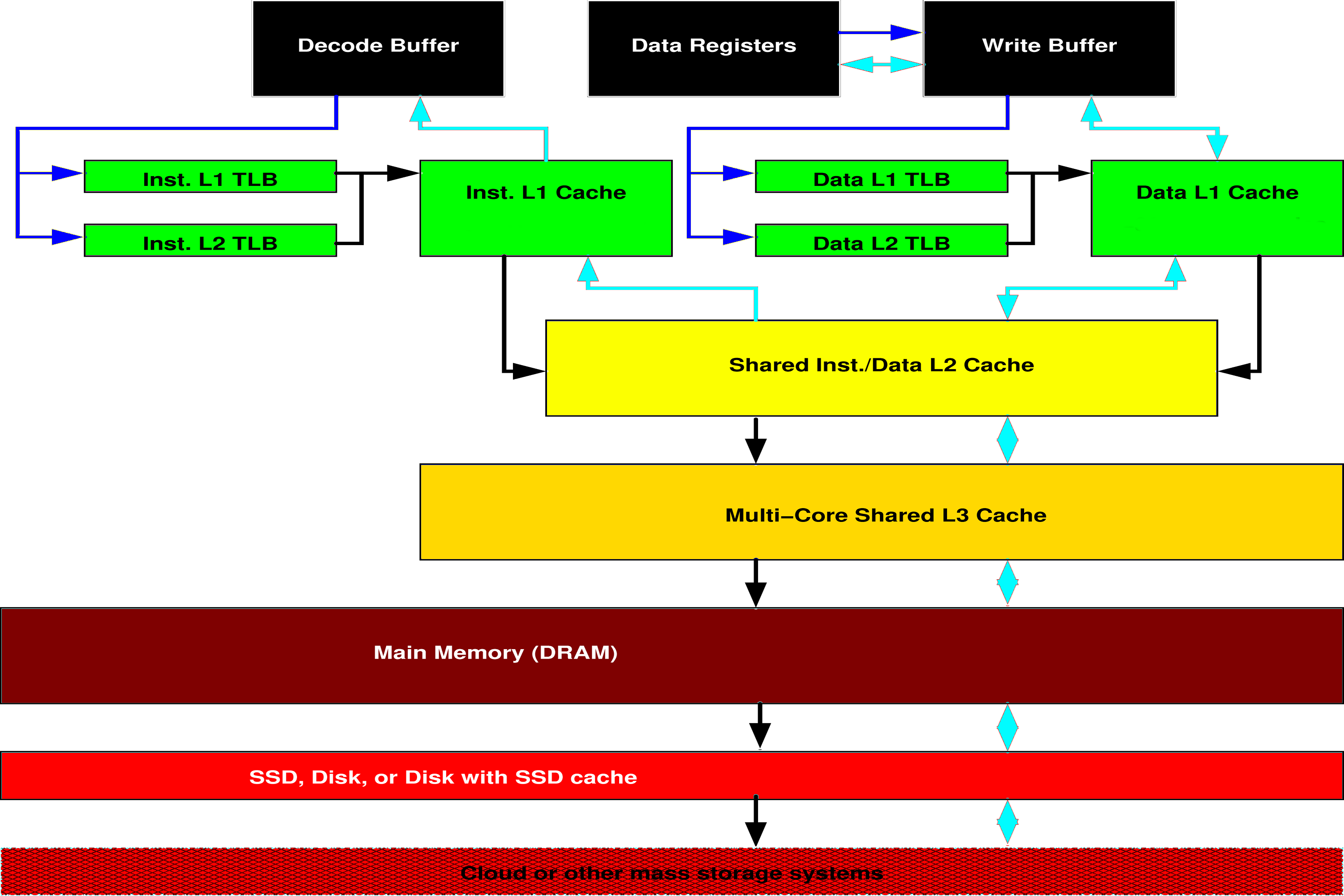

• Memory Hierarchy levels and characteristics: Registers, L1 Cache, L2 Cache, Split I/D Caches, Main Memory, SSD/Disk
• Spatial vs. Temporal Locality
• Cache Concepts
  • Hit, Miss, Hit Ratio
  • Cache Organization: Line Size; Associativity (Direct Mapped, Set Associative, Fully Associative); Replacement Policy (Random, Least-Recently-Used (LRU), the fact that there are others)
  • What happens for a read miss or for a write miss?
  • Prefetch
  • The concept of "coherence" -- keeping entries in multiple caches that reference the same object consistent so that all see the same value for that object; invalidation and update protocols
• Basic memory map layout
• Logical vs. Physical Addresses
  • Page Tables; L1 and L2 Translation Lookaside Buffers (TLBs)
  • Placement of TLBs (before L1 cache, so caches are physically mapped)
  • Concept of Virtual Memory (pages not resident in memory, but on disk)
• Current parameters: 32B or 64B line size, 4KB page size, at least MBs of cache total in 3 levels, at least GBs of main memory (with access time in hundreds to thousands of clocks), at least 250GB of SSD and/or 1TB of disk; why are TLBs getting to be a big problem?
• Data layout issues and what this means for data access pattern speeds: potential benefit of a[i][j] vs. a[j][i], potential benefit for array of struct vs. multiple arrays

So, how much does memory access order matter? Consider the following program:

volatile double a[N][N];

main()
{
        register int i, j;

a:        for (i=0; i<N; ++i) {
b:	        for (j=0; j<N; ++j) {
        	        a[i][j] = 0;
	        }
        }
}

Let's compile four versions of this for N=4096. The first version, x0, is as shown above. The second version, x1, swaps lines a: and b:. The third and fourth versions, x2 and x3, are like the first two versions, except in that the loops run backwards, using for (i=N-1; i>=0; --i) { and for (j=N-1; j>=0; --j) {. On a rather old AMD Athlon 64 3200+ processor, a somewhat newer Intel i7-8700 3.2GHz processor, and a modern AMD Ryzen 9 6900HX (a lower-power mobile processor, whereas the other two are desktops), the user times are:

Program	Athlon 64 3200+ User Time (seconds)	i7-8700 @ 3.2GHz User Time (seconds)	Ryzen 9 6900HX User Time (seconds)
x0	0.136	0.024	0.003
x1	1.652	0.126	0.135
x2	0.148	0.024	0.003
x3	1.632	0.138	0.122

In summary, the best memory access order was 12X faster than the worst one on the older processor. It didn't make as much difference on the i7-8700 processor, but was still 5.75X faster. On the newest processor, the Ryzen 9, the best memory pattern ran a very scary 45X faster! There is a lot going on even in this simple test, but a couple of points here are:

• The newer machines have larger caches, so this almost fits in cache; it would take a larger N to see the worst-case performance hit
• The Ryzen part seems insanely fast with the best access orders, which is probably due to aggressive prefetching

However, there's another way to interpret these performance numbers. The AMD Athlon 64 3200+ was released in 2003. The Intel i7-8700 3.2GHz was released in 2018 and the Ryzen 9 6900HX in 2022. Not surprisingly, the newer processors are much faster than the old one using the same version of the code. Very surprisingly, the best layout using the 19-years older processor was STILL COMPETITIVE with the worst access order using the newer processor!
